Plasma enables UV metal printing

A completely new, patented atmospheric plasma source enables intensive, metal-specific surface treatment, resulting in a flawless surface that is virtually free of organic contaminants. This preparation of the surface for printing achieves unprecedented adhesion for UV inks, allowing them to withstand subsequent production steps such as deep drawing and flanging without problems. Unlike previous pretreatment processes, which use solvents and require a lot of energy and ovens, the new process works without solvents. The curing time of the UV-based inks is less time and energy consuming, and the performance now achieved also enables high production speeds of up to 6500 metal sheets per hour.
By using nitrogen and its strong ionization in the plasma source, high kinetic energy is transferred to the material to dissolve the organic contamination from the metal surface. This unique treatment is similar to high intensity annealing, but in this case the temperature exposure is very short and therefore more favorable to the material.

Industrial plasma technology is based on a simple physical principle: When energy is supplied, the states of matter change. Thus, solid becomes liquid and liquid becomes gaseous. If further energy is now added to a gas, e.g. air, it is ionized and changes to the high-energy plasma state.

If the ionized gas meets a surface, its properties change. For example, it can become particularly hydrophilic or hydrophobic. Plasmatreat takes advantage of this phenomenon and applies it to various materials, such as a wide range of metals, plastics or glass. Pretreatment with Openair-Plasma^® expands the application possibilities of established materials and enables novel materials as well as unimagined material composites. For example, this technology is also driving industrial inline use in the field of coatings for metal packaging.

Take your chance to experience plasma technology live at METPACK 2023 in hall 3, booth 3C55. Book your individual appointment with our expert now!

Make an appointment

How Does this Exactly Work?

Like no other form of energy, plasma energy is outstandingly suited for targeted surface treatment of all types of materials. Even highly sensitive surfaces can be reliably and safely cleaned, activated and coated. This creates microfine, pure metal surfaces that enable uncomplicated wetting and adhesion of the UV coatings and/or printing inks.

Plasmatreat Live METPACK 2023

Openair-Plasma^® - Making Surface Treatment Sustainable

At this year's METPACK we will present our Openair-Plasma® technology for the application in the metal packaging industry for the first time at booth 3C55 in hall 3. Working closely with our partners Brasilata and Actega, we have managed to integrate atmospheric plasma technology into an existing production line at Brasilata, making the use of UV coatings on steel (TP/TFS) viable for the first time.

Let our project team explain to you on site the development process and the application of plasma technology in this special case and show you how the use of a plasma system can open new ways also in your production.

In addition, we will give you a compact introduction to atmospheric plasma technology. We will show you our Openair-Plasma® live on site and explain what makes plasma application an efficient and environmentally friendly alternative to conventional surface treatments of metals.

Atmospheric plasma technology is a "game changer" when it comes to adhesion properties, substrate replacement or functionalization of surfaces. Make an appointment right now and stop by to learn more about Openair-Plasma® technology.

Let's meet live at METPACK 2023

Comprehensible demonstration on modern plasma system for flat materials

Visitors at METPACK can discover the plasma prozess live: A plasma system that pretreats flat substrates prior to printing with UV inks or coatings will be presented. This system has eight rotating nozzles and will treat materials, such as metal sheets for can production, before printing or painting. With the rotating nozzles, a large-area of the metal surface is pretreated with plasma uniformly. Precisely matching the speed, the distance between the nozzle heads and the substrate, and the intensity of the plasma nozzle to the application in question is one of Plasmatreat's core competencies. The innovative system for this patented process can be excellently integrated into existing lines.

Ticket Raffle

Are you interested in learning more about Openair-Plasma^® in metal packaging processes? Would you like to visit us at METPACK 2023 from May 2nd - 6th, 2023 in Essen and get to know Plasmatreat?

Then here is your chance to win your entrance ticket with us. Participate now and let us discuss your processes and find an optimal and sustainable solution together.

By sending the button you automatically accept the conditions of participation.

Take your chance now and win your ticket for METPACK 2023!

E-Mail

Company

Title

Academic Title

First Name

Last Name

Language

Country

In which Industry are you working?

Note

Newsletter Subscription

I agree that Plasmatreat may send me information, newsletters and related services by e-mail and that for this purpose my contact information provided above will be processed by the above mentioned group of companies.

Privacy

I have taken note of the additional information concerning the processing of my personal data. Privacy Policy

ReCaptcha*

Don't fill this field!

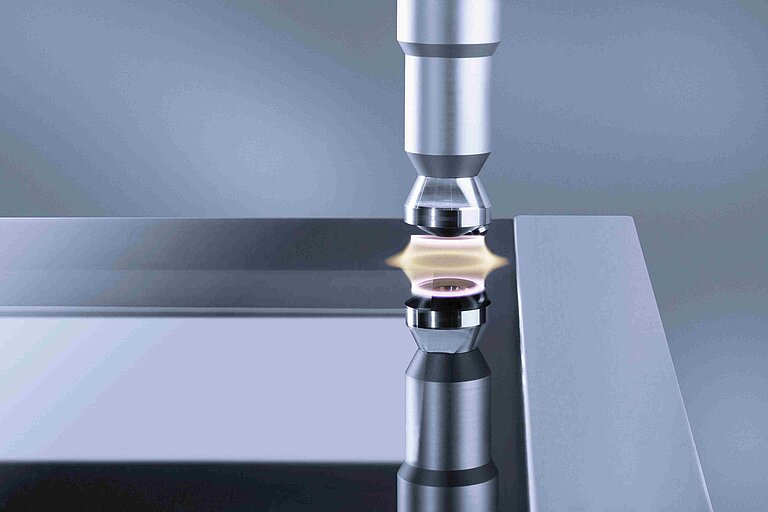

In the bonding of painted components, which has become an increasingly important process in many industrial sectors and requires absolute reliability, plasma technology provides effective support. Here, too, microfine cleaning, e.g. for metal and glass with Openair-Plasma® results in an increase in surface energy that favors strong and long-lasting bonding.

Openair-Plasma® technology offers a high savings potential for manufacturers of metal packaging. In production, no energy-intensive ovens are then needed for curing solvent-based inks. There is also no need to purchase and dispose of chemical baths, as is the case with the use of chemical primers. In general, a plasma system also takes up less space than conventional pretreatment methods and is less expensive to purchase and invest in.

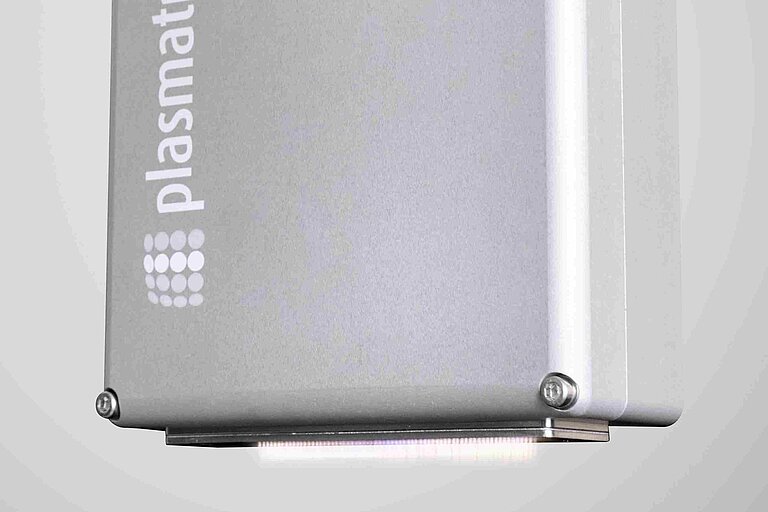

With the new PFW100 plasma nozzle, Plasmatreat has a suitable nozzle ready for the pretreatment of flat components or surfaces, which can be used for processes at high speed and at the same time in a large width. The PFW100 is particularly suitable for the flat cleaning of metal. The PFW100 performs uniform pretreatment over a width of 100 mm per plasma nozzle at relative speeds of up to 200 m/min. The treatment width can be flexibly varied via the modular arrangement of several nozzles.

We are Ready for Your Challenge

With our global sales, service and partner network we are able to support you - wherever you are. With our expertise and experience we are well prepared to help you with your demands in the area of specialized surface treatment.

You have more questions that need detailed explanation? Book your appointment now live at the METPACK 2023 or use our contact form to get in contact with our surface treatment experts directly.
